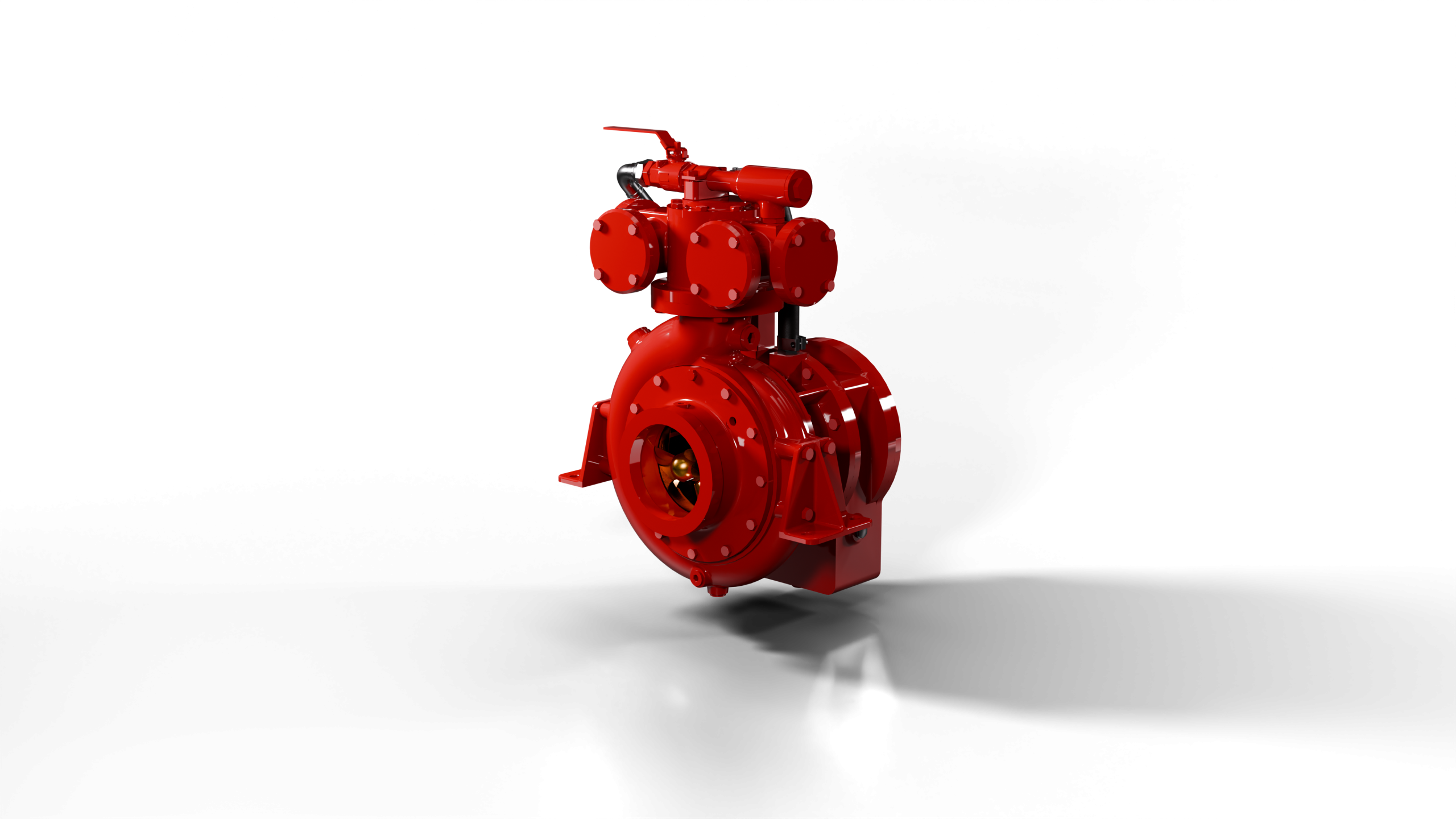

Esteri 400/25
- Ask for an offer
- Categories: Fire Pumps, Vehicle Pumps
ESTERI 400/25 (2-stage pump)
EN 1028 classification FPN 10-4000 / FPH 40-250
Nominal flow rate 1st stage 4000 lpm / 10 Bar
Nominal flow rate 2nd stage 250 lpm / 40 Bar
Nominal impeller speed 3200 rpm (1st stage) / 2900 rpm*
Nominal power demand 165 kW**
Volute material Bronze or aluminium
Impeller material Bronze
Pump shaft material Stainless steel
Gearbox material Aluminium
Impeller rotation Clockwise or counterclokwise
Drive flange 41SAE, DIN120 or customized
Limit pressure 17 Bar
Operating temperature range -15 °C … +55 °C (-30 °C to be agreed)
*EN 1028 test conditions
**EN 1028 test conditions. Equipped with gearbox, ratio 1:1,68.
